Solutions | EVAL 3KW 3L BTP Si PFC

Evaluation platform specifications and design resources

Description

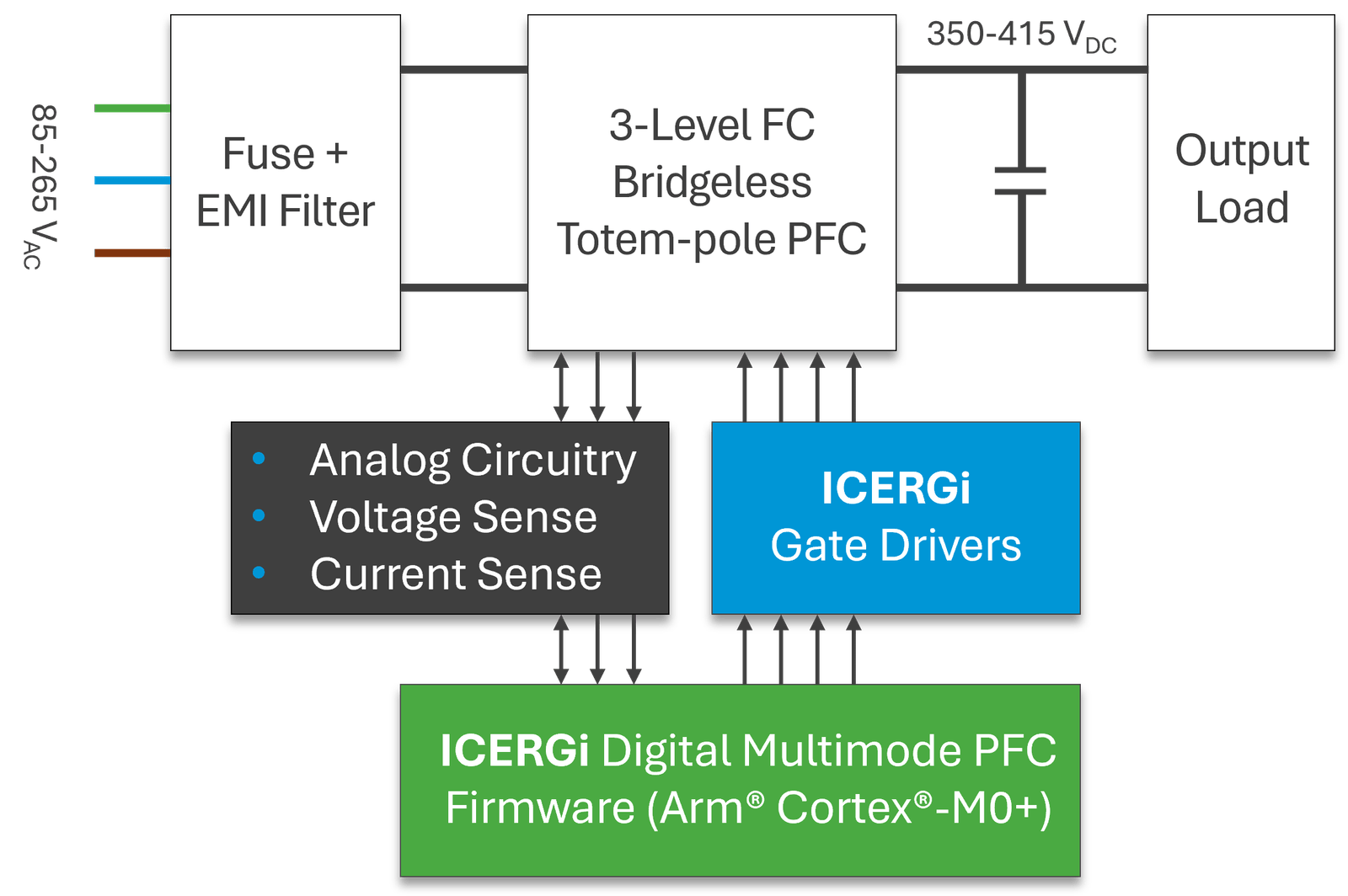

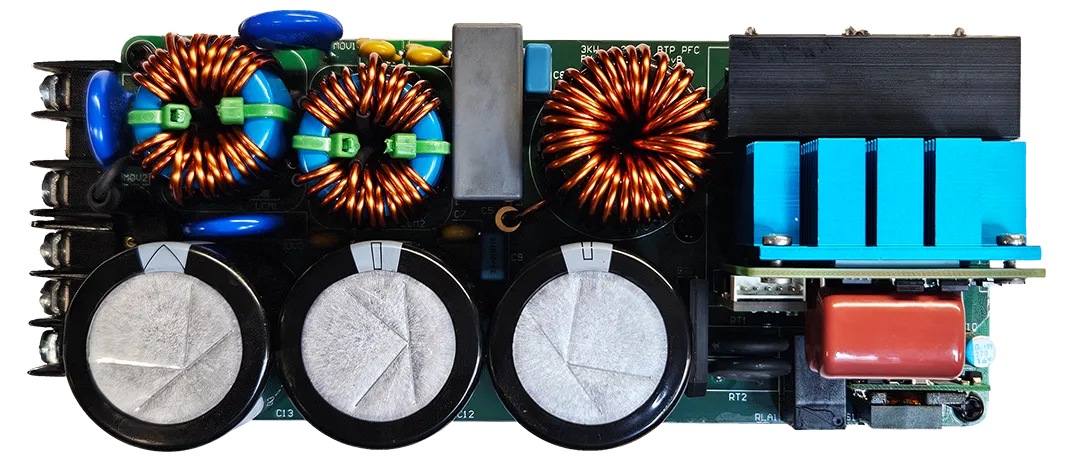

The EVAL_3KW_3L_BTP_Si_PFC is a high-performance evaluation platform designed for demanding power applications such as high-end servers and telecom infrastructure, where efficiency (>99%) and power density are critical. This 3 kW-rated board features a 3-level flying capacitor bridgeless totem-pole PFC topology (3L-FC-BTP-PFC), operating in continuous conduction mode (CCM) with variable switching frequency (45–65 kHz).

The high-frequency boost leg utilizes cost-effective 150 V OptiMOS™ 6 power MOSFETs, while the synchronous rectification leg is enabled by low RDS(on) 600 V CoolMOS™ CM8 transistors. Digital control is implemented using a low-cost, efficient Arm® Cortex®-M0+ STM32G0 microcontroller, offering a compact and scalable solution. The evaluation board is ideal for system designers looking to explore advanced PFC architectures that meet modern efficiency and form factor requirements.

Key Features

  • Industry leading efficiency (ηpeak = 99.3%)
  • Dynamic output voltage (355 – 415VDC)
  • Designed for EN55032 (Class B)
  • Fast surge protection (IEC 61000-4-4/5)
  • Low-cost digital control (Cortex-M0+ MCU)

Advantages

  • Best in class price-performance ratio
  • Natural convection cooling up to 50% load
  • Low component count design
  • Compact form factor (86 W/in³)
  • Utilises industry-standard 150 V MOSFETs

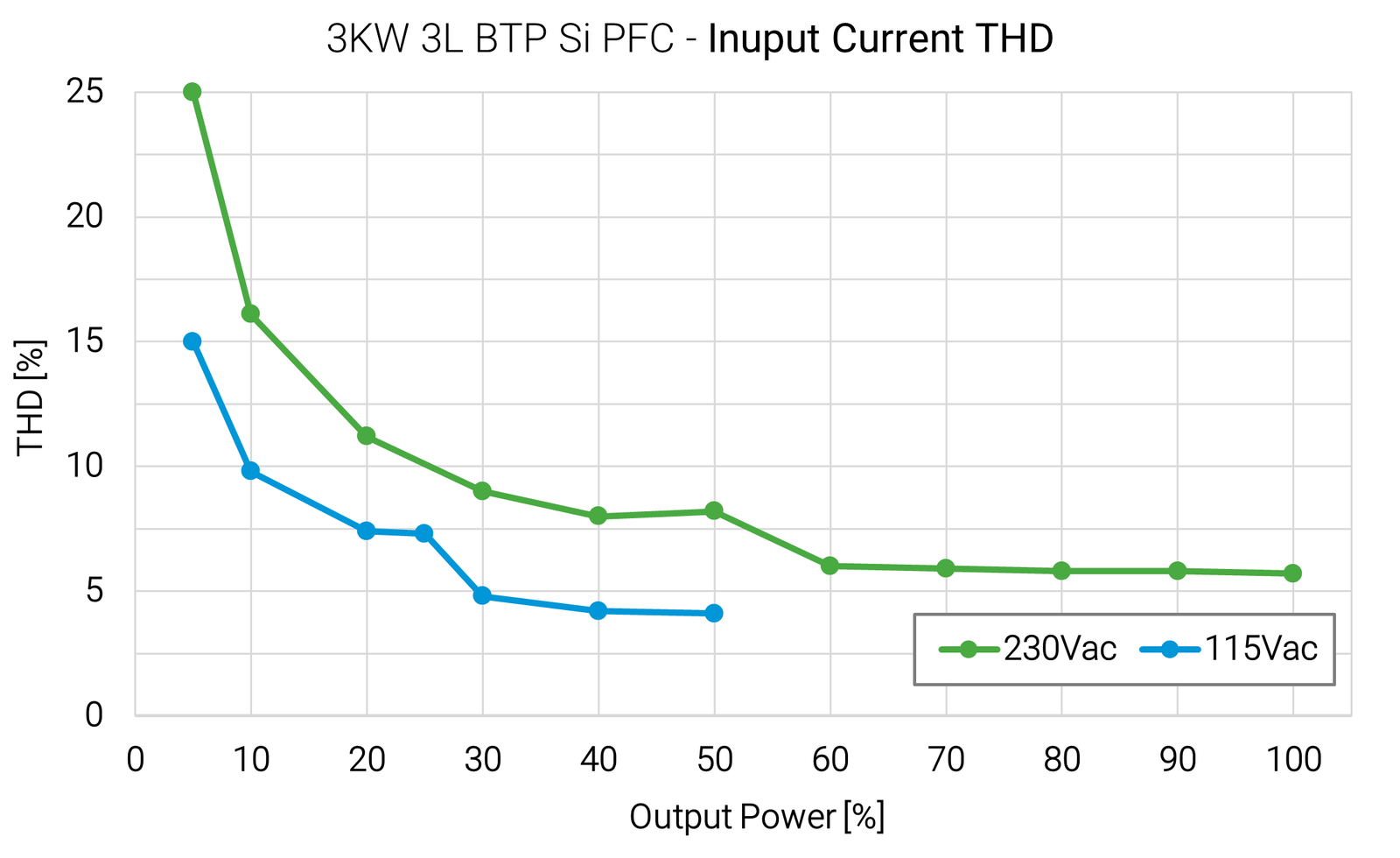

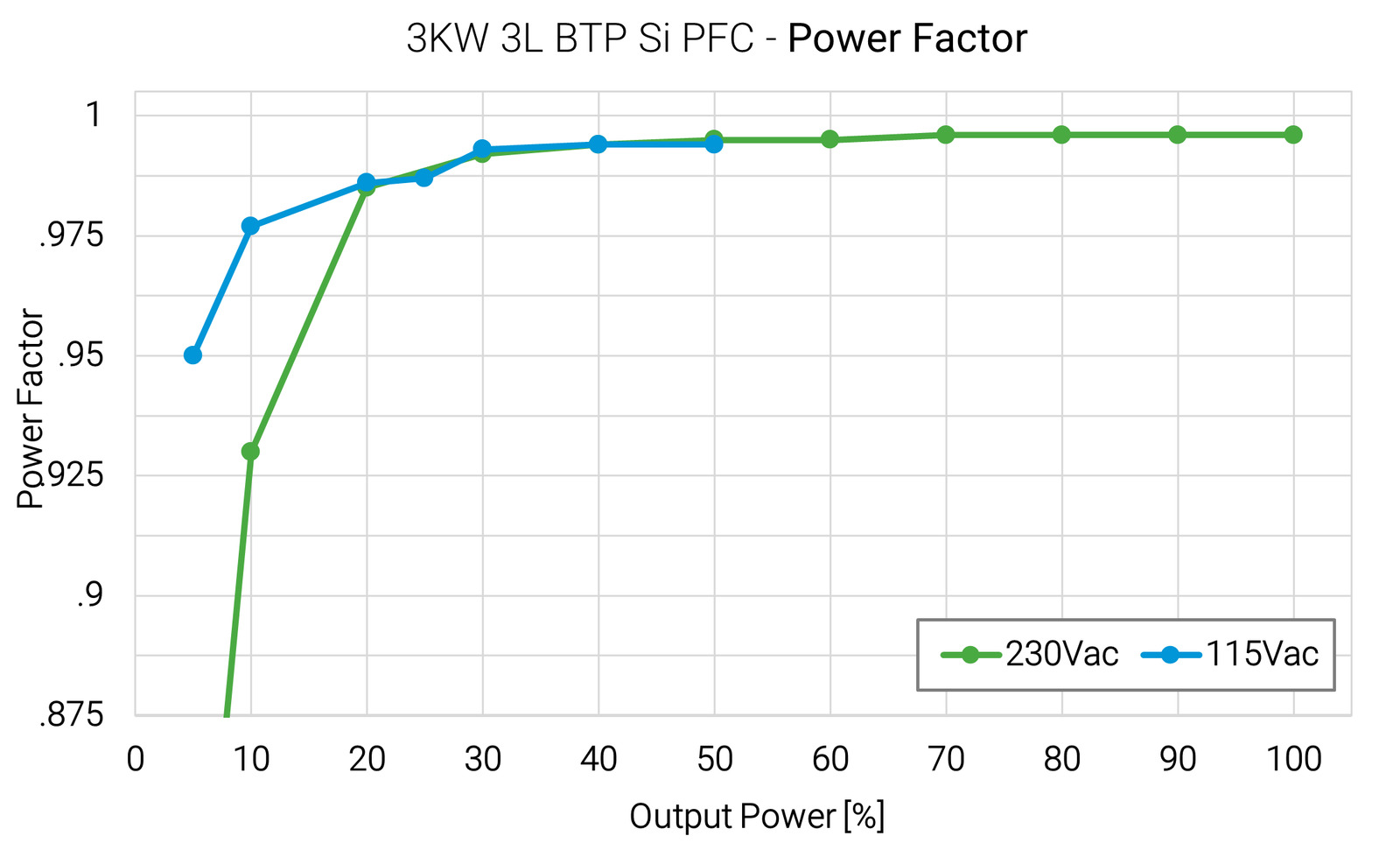

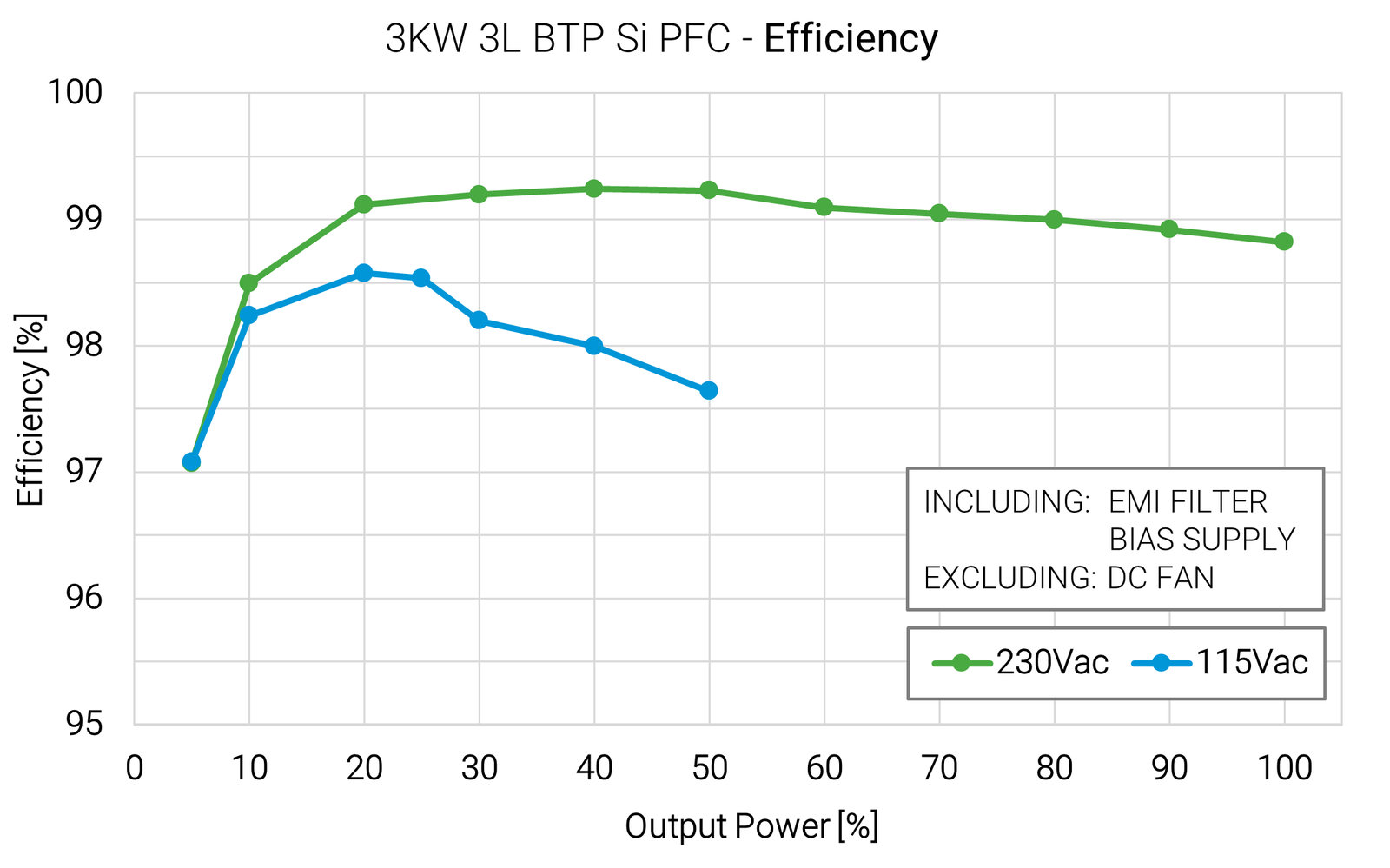

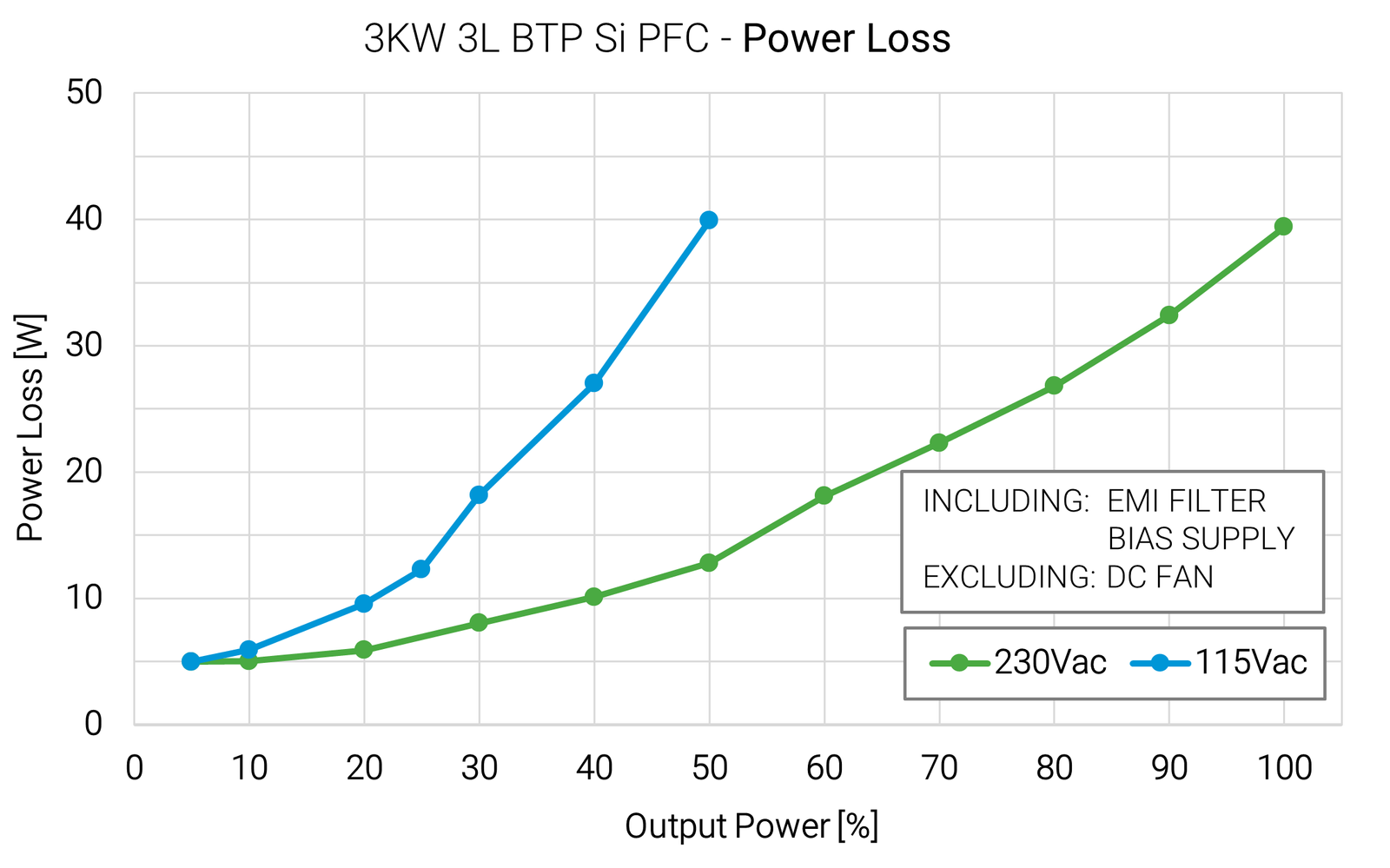

Performance Data

Specifications

Parameter
Symbol
Value / Description

Design Name

EVAL_3KW_3L_BTP_Si_PFC

Topology

3-Level Flying Capacitor Bridgeless Totem-pole

Dimensions

160 mm x 65 mm x 40 mm

Peak Efficiency

ηpea

99.3% @ 230 VAC, 98.5% @ 115 VAC

Input Voltage

VIN

85 VAC – 265 VAC

Output Voltage

VOUT

355 V – 415 V

Output Current

IOUT

0 A – 8 A

Output Power

POUT_Max

3000 W (with derating)

Power Factor

PF

PF > 0.9 (15% – 100% load)

Switching Frequency

fSW

45.8 kHz – 65.2 kHz

Documentation

  • EVAL 3KW 3L BTP Si PFC Datasheet
  • EVAL 3KW 3L BTP Si PFC Manual

Conducted Emissions (EN55032)

  • EN55032 ClassB QP 225V 2600W L
  • EN55032 ClassB QP 225V 2600W N

Line Harmonics (IEC 61000-3-2)

  • IEC 61000-3-2 Report 115V 1500W
  • IEC 61000-3-2 Report 230V 3000W

Drawings

  • Fabrication and Assembly
  • Mechanical Report

Documentation

For datasheets, manuals or technical reports on this product please get in touch.
